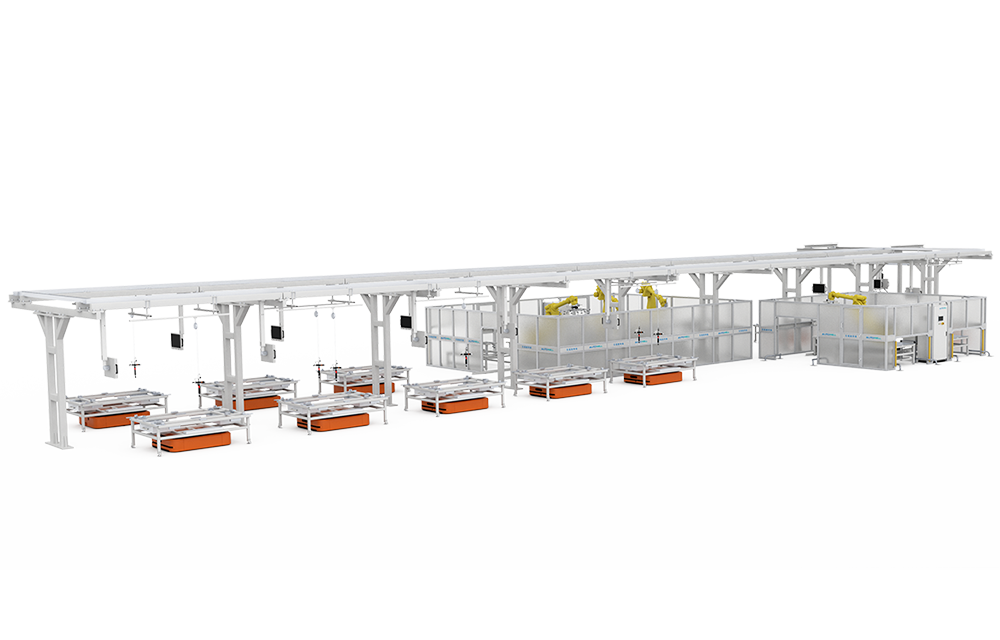

Flexible Pack Automatic Assembly Line with AGV

The fully automatic production line is designed to assemble the modules transported by AGV into PACK. Its process flow mainly includes Module Placement, BMS Assembly and Wiring Harness Installation, Bus Bar Placement, Holder Placement, BMS Placement, Cooling System Leakage Testing, EOL Testing, Top Cover Placement and Tightening, Leakage Testing, PACK Unloading, etc.

Capacity

10-60JPH
AGV Speed

30m/min
Accuracy

±15mm

Stable and efficient

uptime of the whole line≥98%, the fastest cycle time: 12JPH
Quality assurance

gather key data, monitor and trace the quality through the whole process
Smart system

able to interconnect with MES/RCS/MOM/LES
Strong compatibility

suitable for multiple processes and different types of cells, flexible to produce more than one module length
Flexible layout

AGV dispatching contributes to the flexible layout of production line, not restricted by site or process route change
Safe and reliable

the insulation protection, physical isolation and live data backup is available for the whole line.
